Broken or misshapen products caught in line — the defective piece never reaches packing.
On a food products line, the typical defect — a broken, bent, misshapen or over-toasted piece — is perfectly visible to the eye, but at line speed no operator can catch it. iLEAN Edge inspects every piece with AI vision (CNN) and ejects the defective one with an actuator before packing. No line stops, no rework.
The defect is visible from a meter away — but at line speed no human eye can keep up.
One split piece, another bent, another over-toasted: all three defects jump out when the piece sits still on the table. The problem starts when that same defect rides the belt at the oven exit at several dozen pieces per second, mixed in with hundreds of good pieces, and the operator who is supposed to filter it is also watching the oven, the toasting tunnel, packing and a couple of screens.
This is the sequence any shift lead on a food products line knows:
- The defective piece slips into the bag. The operator never gets to see it; sampling inspection every N bags misses it too, because it lands in exactly the bag that is not sampled.
- The pallet ships to the customer. The retailer — big chain, HORECA distributor, export — finds it at receiving. The customer's quality control rejects the entire pallet over the defect percentage.
- The pallet comes back. Reverse logistics, product destroyed or reprocessed in bulk, invoice issued and then voided, sales giving explanations, the quality team reconstructing which batch it was, which shift, which oven.
The classic system — operator + checklist + sampling — works on perfect product, but lets through what should never get through on the day the flour changes supplier, the baker adjusts the fermentation or the line runs flat out to cover the retailer's peak. The defect is not invisible; it is the line speed that makes it uncatchable. And every pallet rejection weighs more than the cost of the product: it weighs on your supplier scorecard with the retailer.
iLEAN Edge — eyes and hands on the belt, without rebuilding the line.
The problem is not one of judgment (the operator knows perfectly well what a defect is) or of standards (the internal standard is clear): it is one of speed and sustained attention, two things where the person loses and machine vision wins. iLEAN Edge replicates the veteran operator's judgment at belt speed, without fatigue, piece by piece.

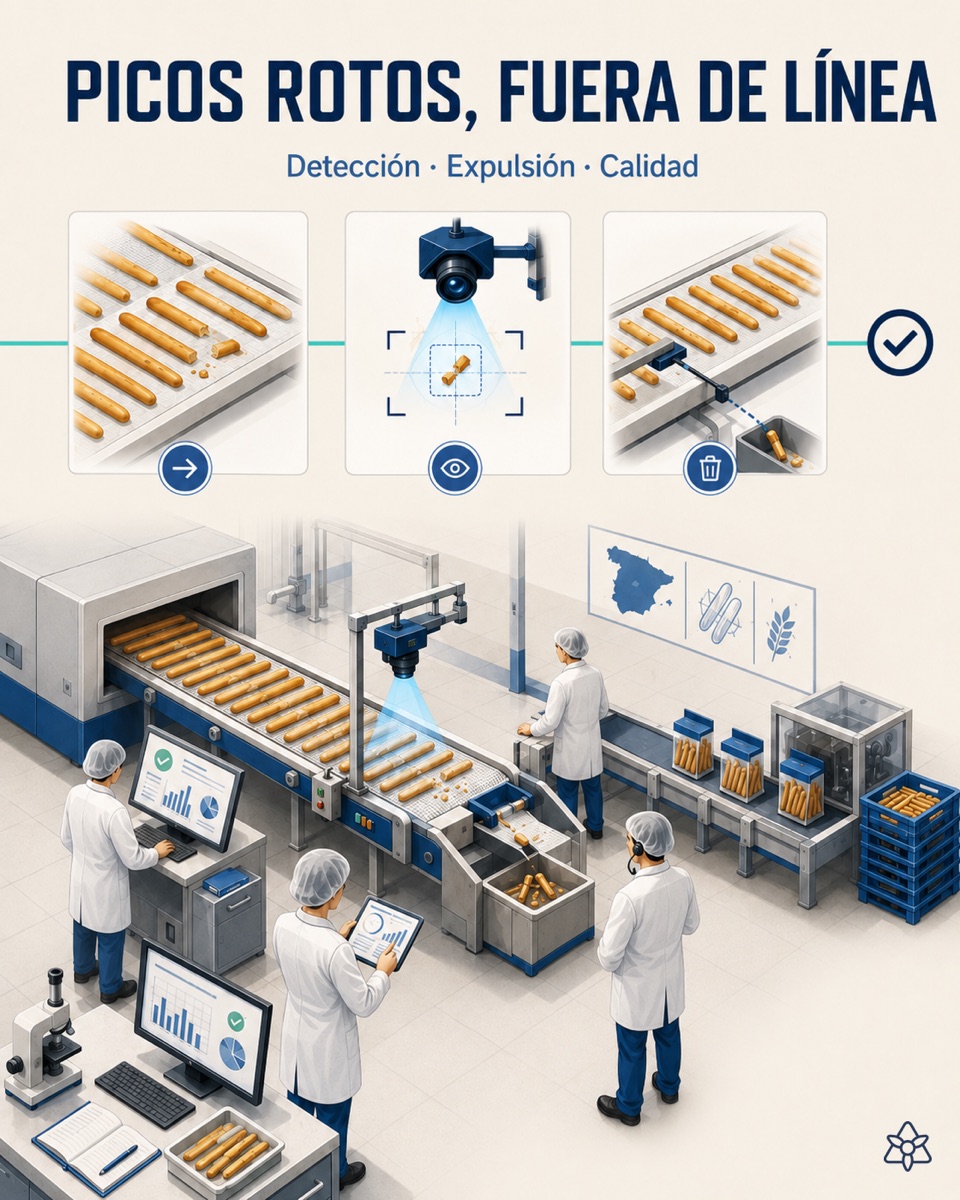

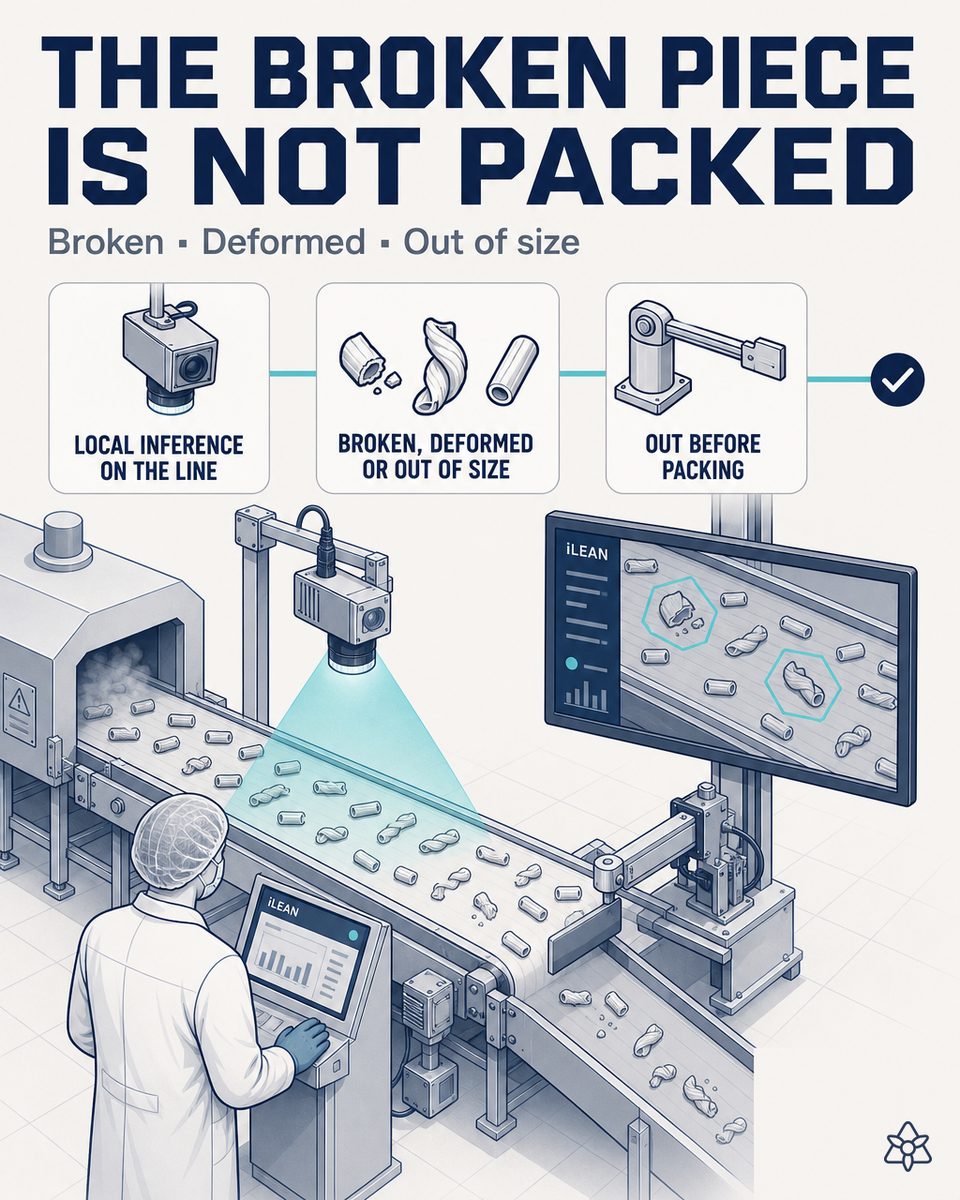

Edge sees every piece at the oven exit. The CNN tells broken, bent, misshapen and out-of-range toast apart. The actuator ejects before packing. It works without a network. The line never notices — the bad piece just stops getting through.
The specific iLEAN piece for a food products line:
- Edge — a physical terminal installed over the belt, at the exit of the oven or the toasting tunnel, before packing. It carries an industrial camera and a convolutional neural network (CNN) trained on pieces of your own product. It tells a good piece from one that is broken, bent, misshapen or off-color. When it detects a defect, it fires an actuator (compressed-air blast, mechanical diverter) that ejects it off the belt into the scrap or recirculation bin. It works without a network: if the plant loses WiFi, Edge keeps inspecting and ejecting on the power from the cabinet — what is critical does not depend on connectivity.
- Connect — captures the batch recipe (which flour, what hydration %, what fermentation time, what oven temperature) whether it comes from the ERP, the vertical MES or the baker's production sheet. This means that when Edge detects a defect spike, we know in the same second whether it coincided with a change of flour, shift or recipe.
- Agent — lives in Central, crosses the Edge history (how many defective pieces per hour, per SKU, per shift) with the Connect recipe and the ERP. If it sees the defect spike every time a certain flour comes in or ambient humidity rises, it does not send an email at 10 pm: it alerts the quality manager with the hypothesis already cross-referenced. The person validates and decides.
The Edge terminal installs over the existing belt. There is no need to change the oven, the toasting tunnel or the packing machine. Integration is mechanical (camera mount, actuator output) and network (it picks up recipe and production order when available).
Human inspection vs. inspection with iLEAN Edge
| Aspect | Operator + sampling | With iLEAN Edge in line |
|---|---|---|
| Inspection coverage | Sampling every N bags, 1-2 pieces/second by eye | 100% of pieces, 50+/second |
| Sustained attention | Drops after 1-2h of the shift | Stable, no fatigue, all 3 shifts |
| Detection of broken / bent pieces | Depends on the operator and the piece's position | CNN trained on real product samples |
| Toast out of range (light/dark) | Subjective, unmeasured | Objective color within the SKU standard |
| Reaction to a defect | Pull it by hand or let it pass | Actuator within milliseconds, before packing |
| SKU change (format A → format B → format C) | Re-explain the criteria to the operator | Load the format's model, same terminal |
| Retailer pallet rejection | Happens; rework, reverse logistics, brand damage | ≥30% fewer (estimate to be validated) |
| Operation without a network | n/a | Edge keeps running on the cabinet's power |
| Batch traceability | Reconstruct by hand | Per-piece history, automatic |
Impact estimate for your production line — to be validated with your numbers.
The block below is an estimate to be validated with the specific data of your line. We put it forward so the committee has an order of magnitude; we refine it during the diagnostic.
- Baked food products line with a rotary or tunnel oven, multi-SKU (small format, thin format, elongated format), output to a vertical or flow-pack packing machine.
- Edge pilot on one line (industrial camera over the belt + air-blast actuator + integration with the batch recipe). First value expected within a few weeks.
- Indicative payback between 3 and 9 months, depending on your current retailer rejection rate, the average cost of a returned pallet and the line's volume. The hard lever is the pallet return avoided, not the savings on defective bread: one return pays for the pilot.
- Estimated reduction of rejections at the retail shelf ≥30% in the first months, scalable as the CNN sharpens with new samples. (Conservative range — estimate to be validated.)
The defensible technical anchor comes from iLEAN's most documented real case: a powder-coating line at an automotive supplier, where the same Edge approach (CNN + actuator) achieved detection >90% in 2 weeks, >98% at pilot close in 60 days and a conservative payback of ~3 months (the real figure was 5-6 weeks; we present the defensible floor). The actuator fired in 45 ms. The arithmetic transfers well to a baking line because the structure of the problem is the same: a defect visible to the eye, a line speed that makes it uncatchable, and enormous value in stopping the piece from moving on.[1]
And the quality manager's reasonable doubt
"What if the AI gets it wrong and lets a broken piece through?" — hallucination is a problem of free generation, not of anchored tasks. In tasks where the AI merely classifies an image against known patterns (this piece matches the "good" pattern or the "broken" pattern), the best models brought error below 1.5%[2]. And even so, nothing is decided in a vacuum: the quality manager sees each shift's history, validates false positives in the Edge interface itself and retrains the model when needed. The line does not stop while training. The person sets the criteria; the machine keeps the cycle turning.
[1] Real iLEAN case, powder-coating line · automotive — technical reference for the Edge + CNN + actuator approach.
[2] OpenAI paper "Why Language Models Hallucinate", 2025 — on AI reliability in anchored tasks.
What people ask about shape-defect detection in food products
Exactly which defects does iLEAN Edge detect on a food products line?
The defects visible to the human eye but impossible to filter at line speed: broken or split piece, bent or curved, misshapen (caliber out of range, irregular geometry), over-toasted or pale (color outside the SKU standard), open dough or visible fermentation defect. The CNN is trained on real samples of your product — it is not a generic library — and learns what your shift lead would recognize at a glance, replicated piece by piece at belt speed.
Does it work with different product formats?
Yes, with the same Edge terminal and per-format training. Small format, elongated format, mini format, rustic format with a more textured finish — each format is a trained class in the CNN, and the SKU change is done by loading the model for the format about to be produced. The camera and the actuator are the same; what changes is the model and the ejector parameters (blow pressure or diverter) according to the piece's caliber and weight.
What throughput can iLEAN Edge handle on a food production line?
The line's real throughput. Edge inspects 50+ pieces/second without breaking a sweat — the bottleneck is never the vision, it is the physical actuator. The useful reference comes from the powder-coating case in automotive, where the Edge actuator fires 45 milliseconds after detection. On a food products line at the exit of the oven or the toasting tunnel, that means the defective piece is ejected before it reaches the packing area, without stopping the belt and without the operator having to react.
Does it keep working if the plant loses its network?
Yes, and this is the critical point many cloud systems do not cover. Edge is a physical on-premise terminal with the CNN loaded on the device itself. If the plant loses WiFi, loses fiber, or the vendor's cloud has a bad day, Edge keeps inspecting pieces and firing the actuator on the power from the electrical cabinet. What is critical — keeping a broken piece out of packing — cannot depend on connectivity. When the network comes back, it uploads the history so the Agents can cross it with recipe, batch and production order.
How is a new defect trained?
With samples from your own line. When a new defect appears — because the flour changed, the baker adjusted the fermentation or an export SKU with a stricter tolerance came in — the quality manager marks the pieces in the Edge interface itself (this is good, this is a defect) and the CNN retrains. The typical cycle the powder-coating case demonstrated is detection >90% in 2 weeks and >98% at pilot close in 60 days. The line does not stop while training: the old model keeps working until the new one is validated.
Tell us your case and in 48h we'll send you the estimated ROI of this AI project for your production line.
We work on your line's real data, not ours. Diagnostic with no commitment.
