VSM — Value Stream Mapping with live data

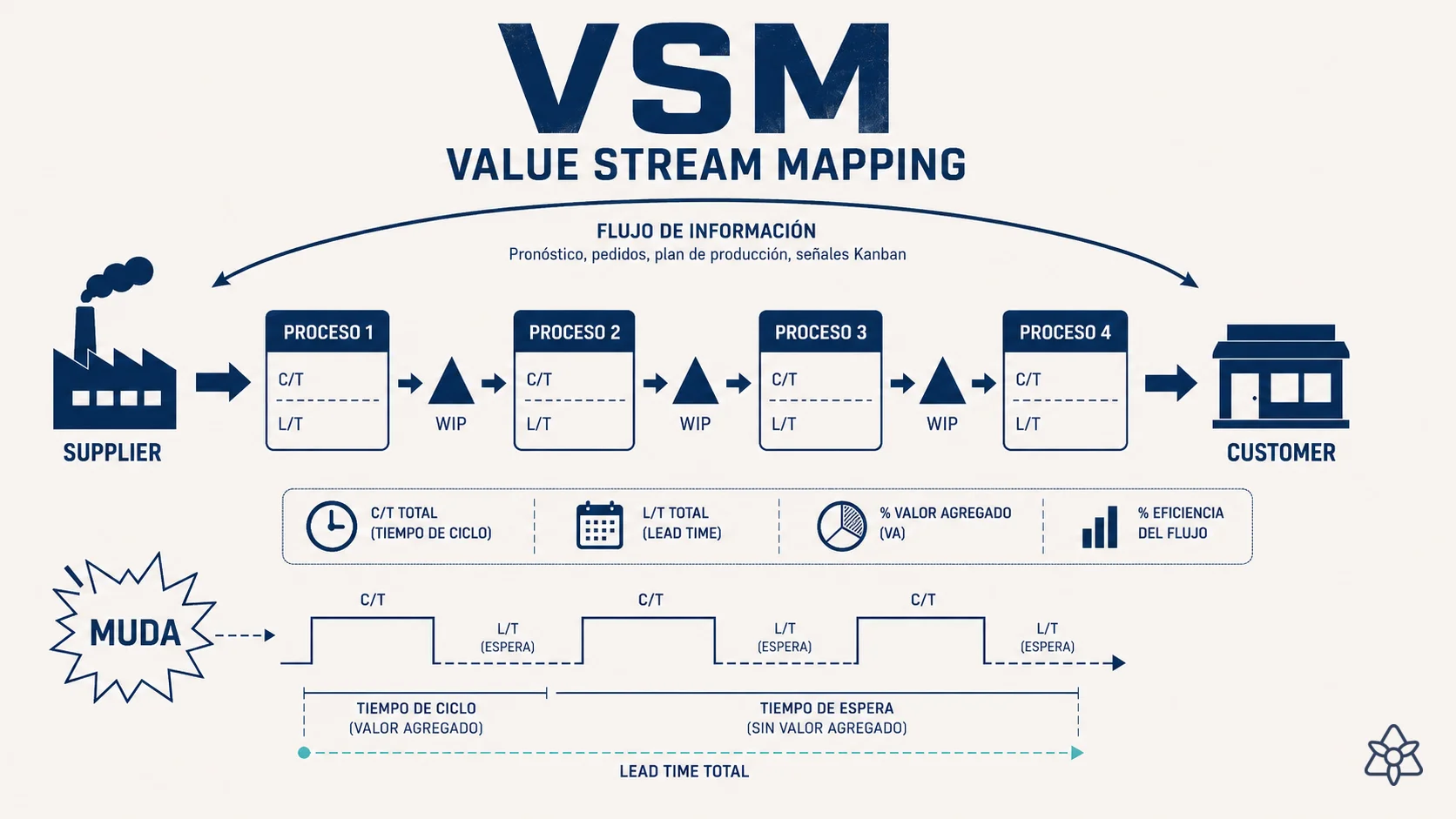

Value Stream Mapping (VSM) is the Lean methodology that draws the complete value flow from raw material to customer — including process times, waits, inventory and information flows — to identify where waste (Muda), variability (Mura) or overburden (Muri) accumulate.
Current state, future state, action plan

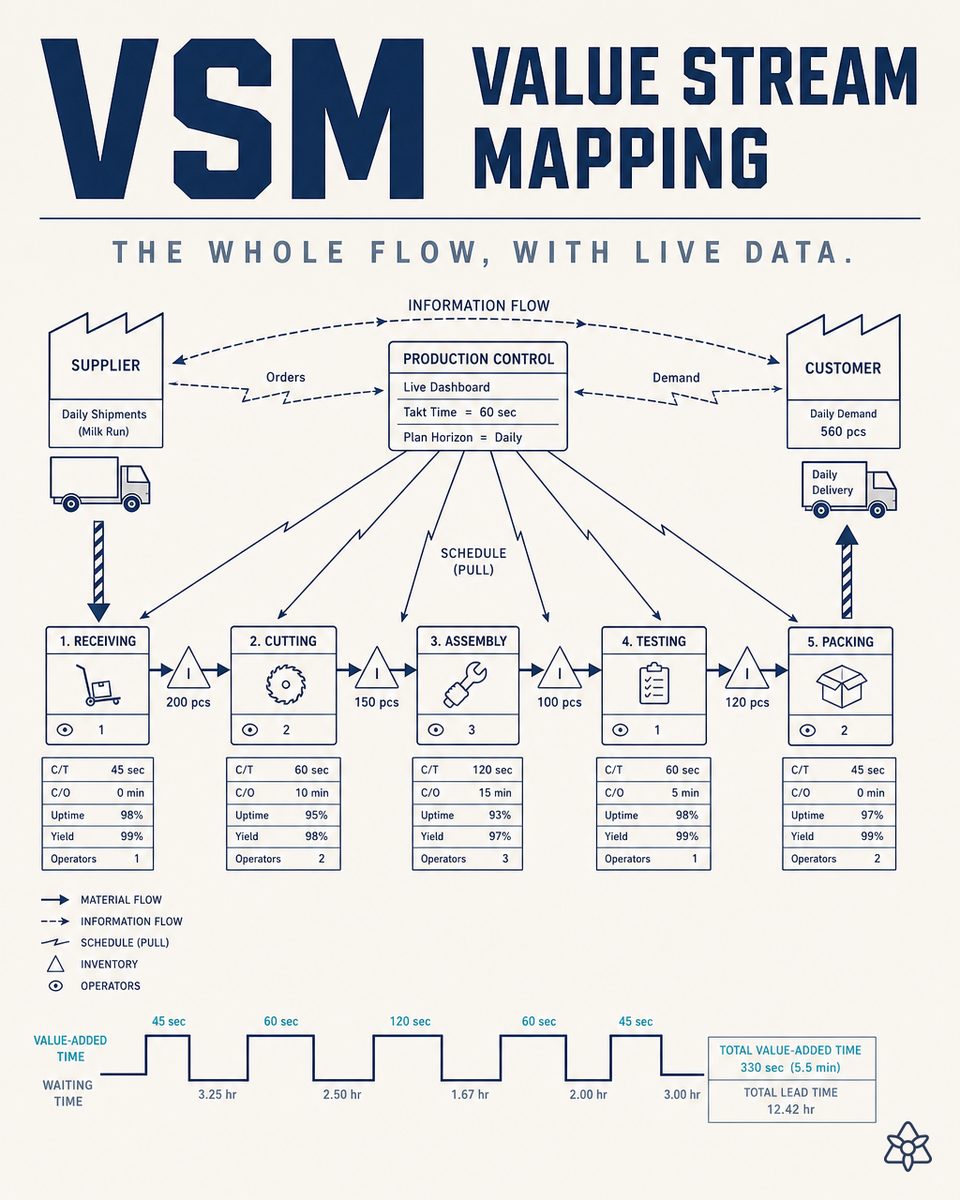

Classical VSM is done on a wall with Post-its. The team walks the plant, draws each station, measures times, notes inventories between steps. The output is three maps:
- Current state: how it is today. Identifies problems.
- Future state: how it should be in 12-18 months. Target vision.
- Action plan: what projects to execute to go from one to the other.
VSM unveils the invisible: e.g., discovering that a part spends 2 hours in real processing and 14 days queued. The problem isn't the process, it's the flow.
iLEAN doesn't replace the method — it brings it into the 21st century.
Every Lean methodology was born to solve an information problem: where stock is, which machine is failing, what changed shift-to-shift. When information is paper, methods are rituals. When it's live data, they become the actual engine of the plant.
Classical method tells you what to measure. The IRIS system guarantees the measurement reaches whoever decides, the moment they decide — without anyone typing it in.
The three capture layers applied: Connect (photo, voice, email, WhatsApp), Edge (computer vision on the line) and Integrations (ERP/MES/SCADA/PLC). On top of that unified information, specialized agents serve the exact context to each person on the floor.
Classical VSM vs. VSM with live data
| Aspect | Classical VSM | VSM with iLEAN |
|---|---|---|
| Cycle time capture | Stopwatch + observation | Auto-measured from PLC |
| Lead time | Sum estimate | Computed from real orders |
| WIP between stations | Visual count on workshop day | Real-time with vision / RFID |
| Update | Annual | Continuous, reflects current flow |
| Muda identification | Team manual analysis | AI agent flags waste automatically |
What people ask about VSM
What is Value Stream Mapping (VSM)?
VSM is the Lean methodology that draws the complete value flow of a product from raw material to customer, including times, inventory and information flows. It's the main tool to identify where waste is in an end-to-end process.
What's the difference between current-state and future-state VSM?
Current state: the map of how the process is today, with all its problems. Future state: the map of how it should be after eliminating waste. The gap between the two defines the improvement plan.
How does iLEAN build a VSM with live data instead of Post-its?
iLEAN pulls cycle times from PLCs, lead times from real orders, WIPs from vision/RFID. The map auto-draws and stays alive — it's not a workshop-day photo, it's a mirror of the current process. Structural changes require manual redesign; metrics update themselves.
What are Muda, Mura and Muri in a VSM?
Lean's three loss types: Muda (waste: any non-value-adding activity), Mura (unevenness: flow variability) and Muri (overburden: overloaded workers or machines). VSM identifies all three.
How often is a VSM updated once digital?
Metric data (cycle time, lead time, WIP) updates in real time. The map layout (stations, connections) only changes when there's physical or process change — that requires manual redesign. In practice, formal reviews are usually quarterly even though data is continuous.
